1*16 Fiber Network Distribution Box , 24 Core CTO FTTH Fiber Optic Termination Box

Brand Name : Hochiry

Model Number : HDX-09A

Certification : CE ROHS

Place of Origin : CHINA

Payment Terms : T/T, Western Union, MoneyGram

Product Name : Ftth Fiber Optic Termination Box

Material : ABS+PC

Application : FTTH Network

Installation : Wall mout or polt mount

Fiber count : 288 core

Color : White or Black

PLC Splitter : 1*16 or 2*8 mini PLC splitter

Size : 385*240*130 mm

Contact Now

Fibra Optica FDB 24 Core Fiber Terminal Box PC ABS 1*8 Fiber Distributions Ftth Fiber Optic Termination Box

Feature:

•2 port for common cable and 24 port for ftth drop cable.

•Provide two options for the slots,can contain 1*16 plug-in cassette splitter or 24 pcs sc adapters and pigtails.

•Function of shock resistance and waterproof.

•The top cap opening angle is 180°0.

•Economic and exquisite,let the construction simple and convenient.

Product name ftth terminal box IP rate IP65
Installation type pole or wall mounting Product size 340*280*105 mm
Material ABS color white (or black)
Operation Temperature -40℃~60℃ Port 1 inlet and 24 outlet
Optional accessory pole mounting ring, sc adapter,fiber pigtails or plc splitter weight 1.2kg

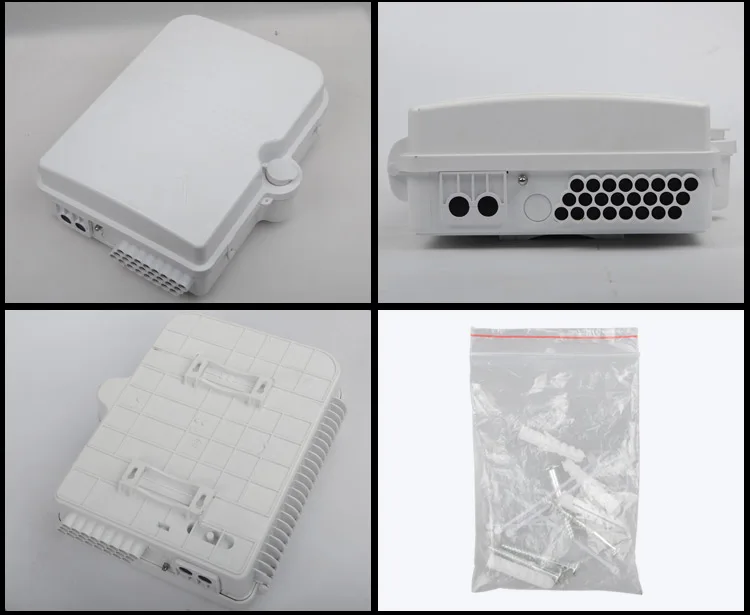

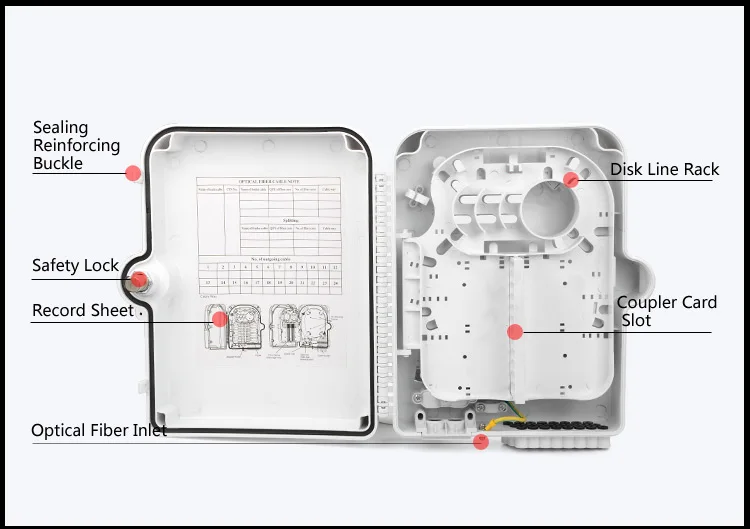

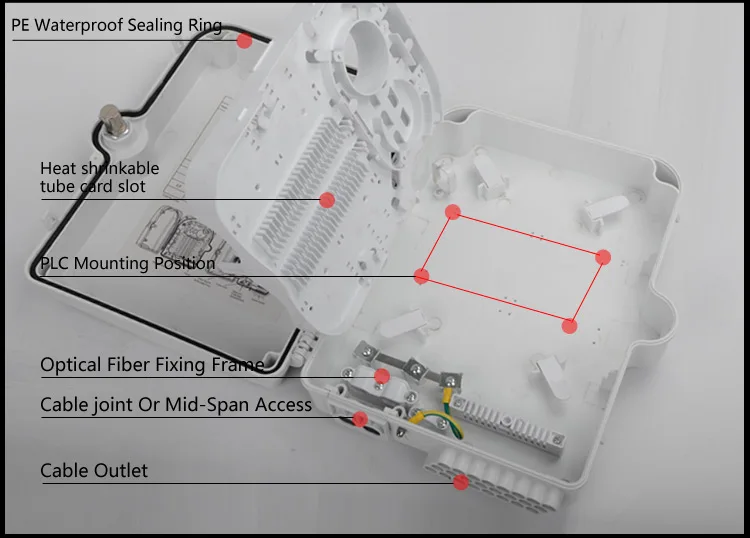

Details Pictures:

1*16 Fiber Network Distribution Box , 24 Core CTO FTTH Fiber Optic Termination Box1*16 Fiber Network Distribution Box , 24 Core CTO FTTH Fiber Optic Termination Box1*16 Fiber Network Distribution Box , 24 Core CTO FTTH Fiber Optic Termination Box1*16 Fiber Network Distribution Box , 24 Core CTO FTTH Fiber Optic Termination Box


Application:


widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
